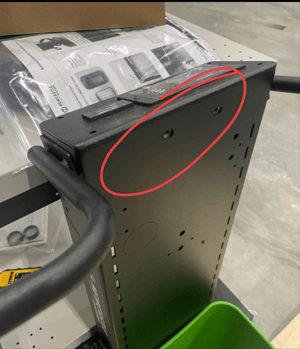

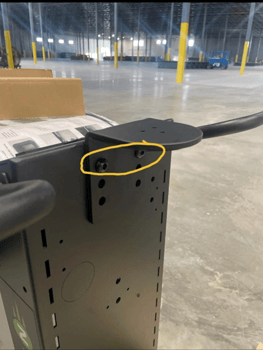

Locate holes on the back of the mast. Using the two small black screws, mount the bracket.

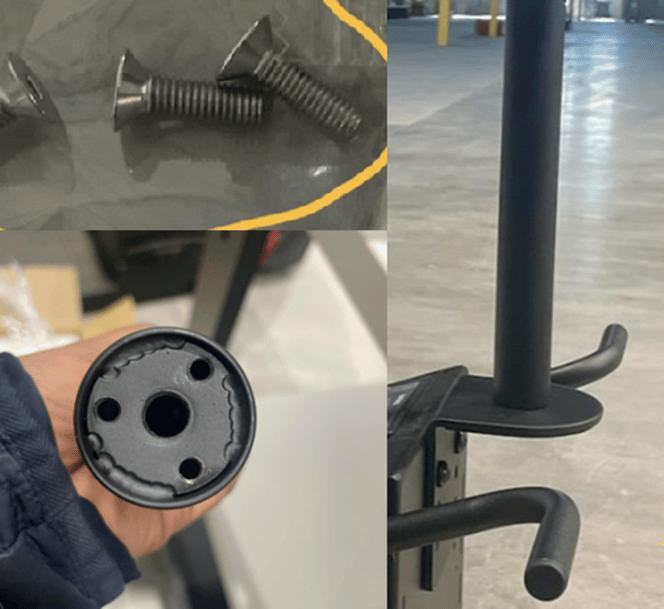

Use the 3 flat screws on the underside of the bracket, mount the pole on top of the bracket.

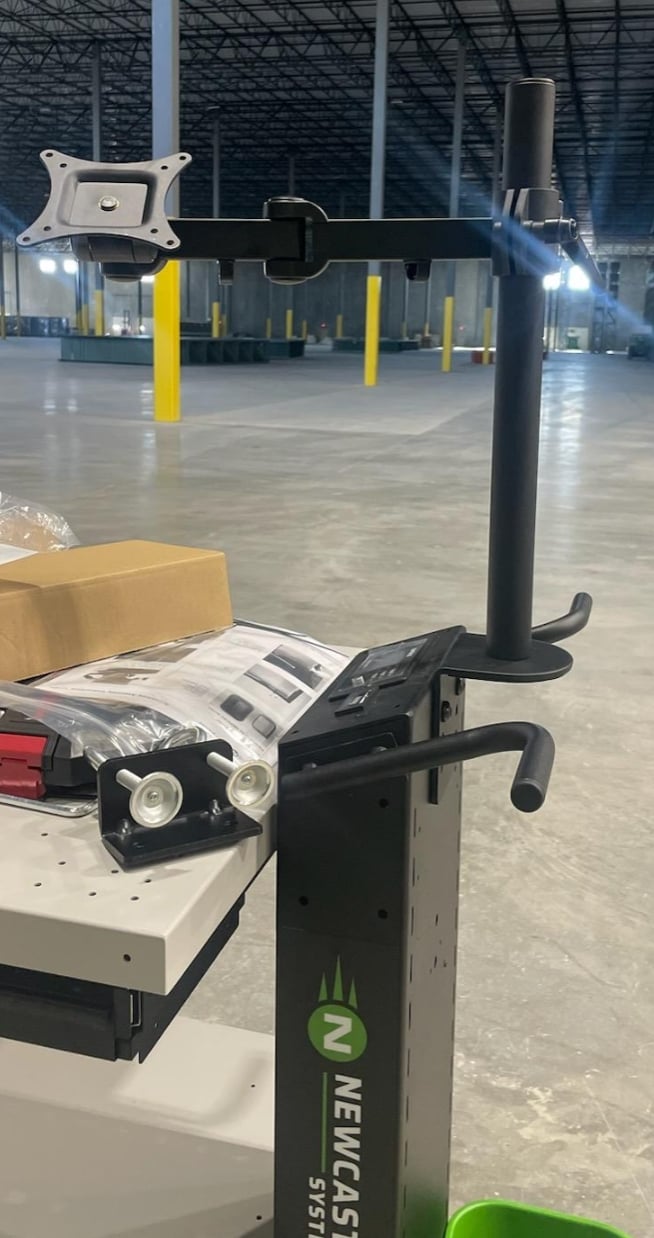

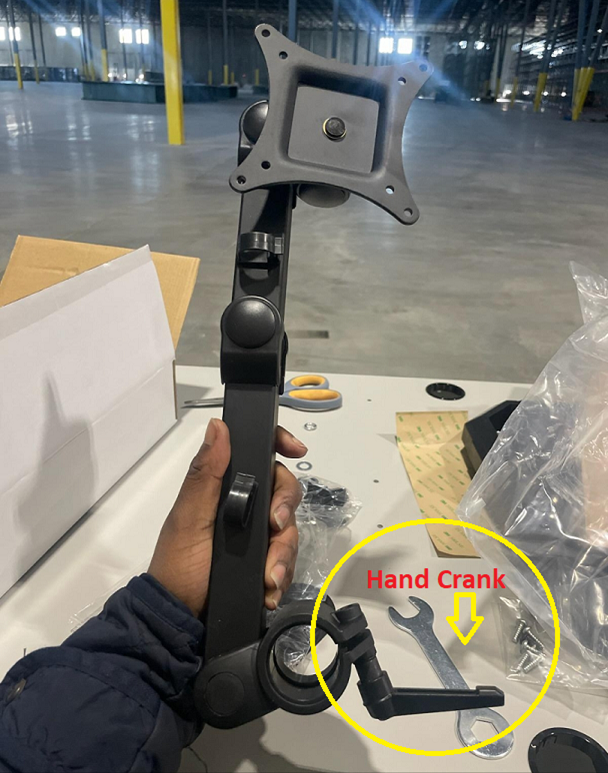

Locate your Monitor arm and place it over the top of the pole. Use the hand crank to tighten the arm into position.

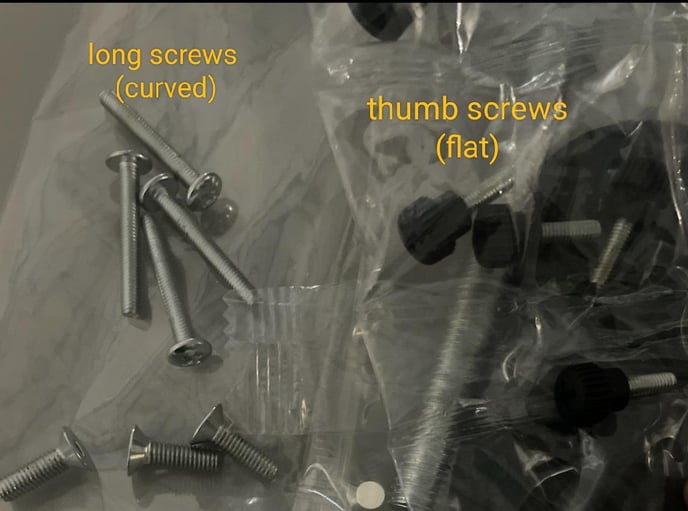

When mounting your monitor, there are different sets of screws. For Curved monitors, you will use the long silver screws. For a flat monitor, you will use the black thumb screws.
Enjoy your Newcastle monitor mount!
