Start by making sure your cart is unplugged from the wall outlet and powered off. The process for removing and
replacing should take about 15-25 minutes.
It is highly recommended that you take photos of setup before starting the disconnect so you have a reference. Unplug the charge cord from the wall.

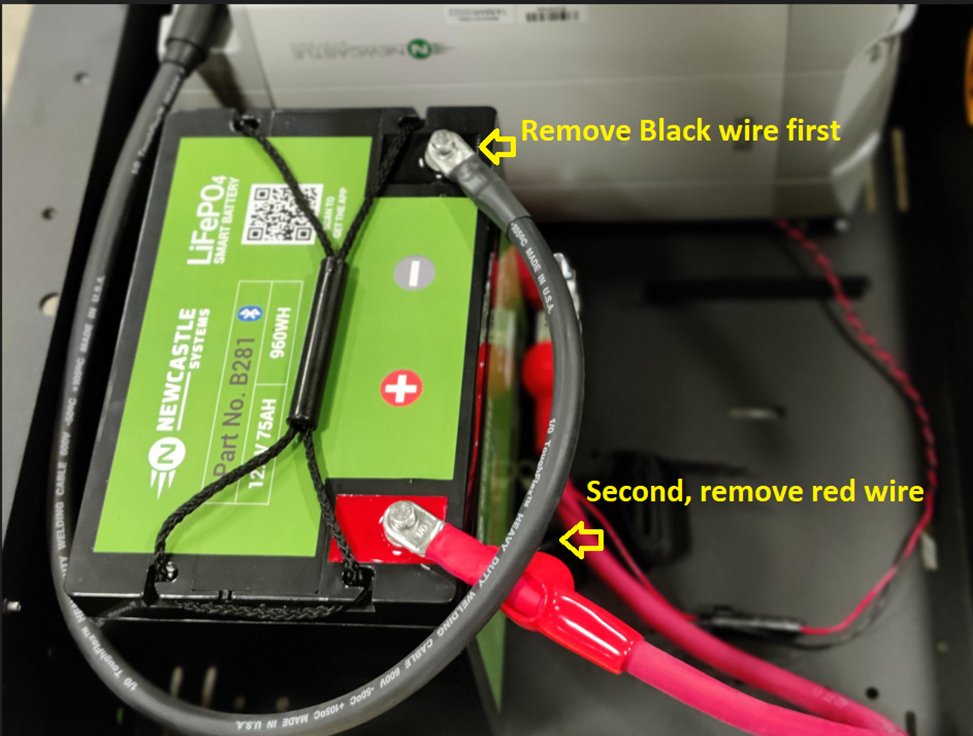

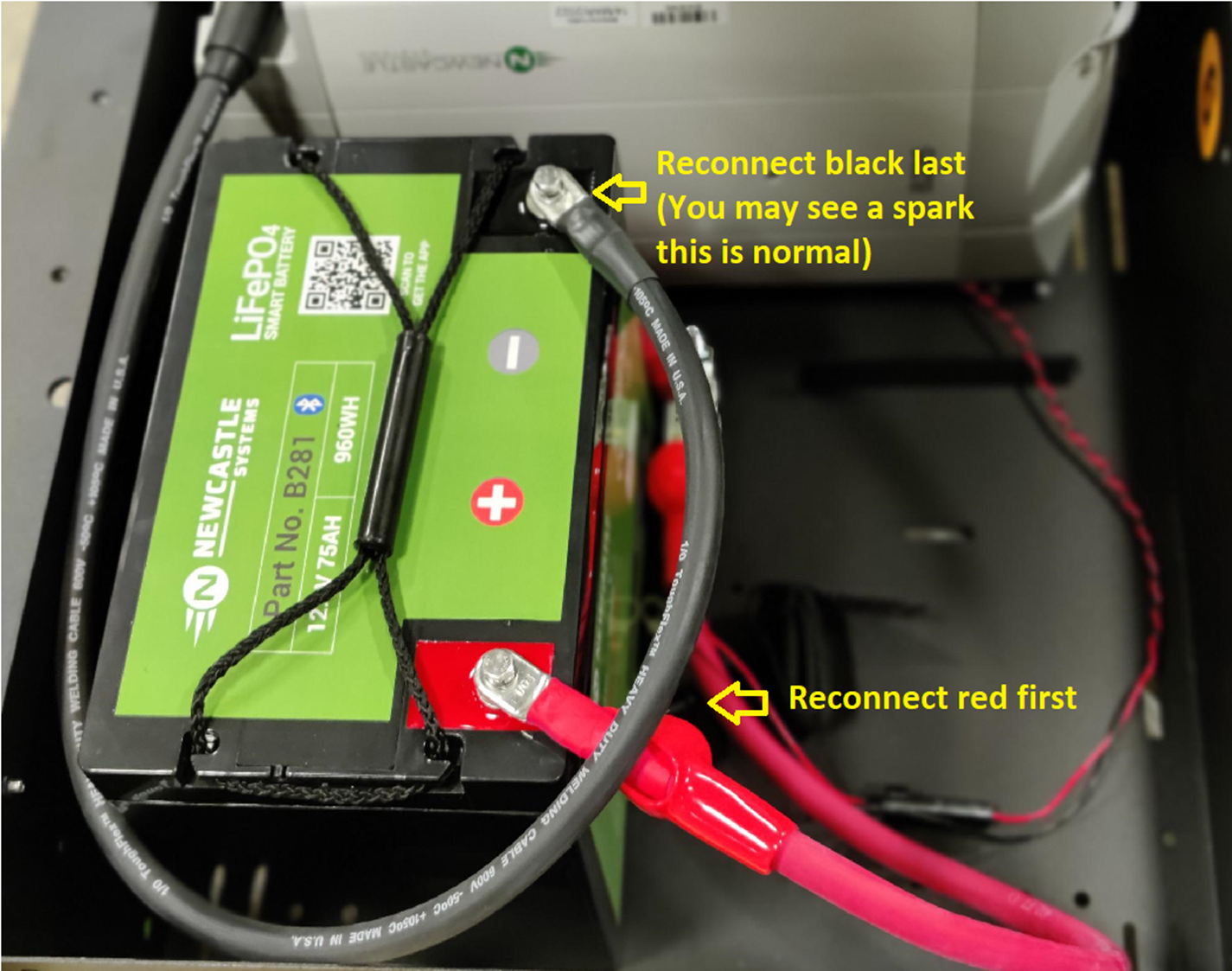

Important: Remove black negative wire from battery FIRST followed by the red wire (10mm socket or wrench). Make sure wires don’t touch the opposing terminals.
Take battery out of cart and place to the side.

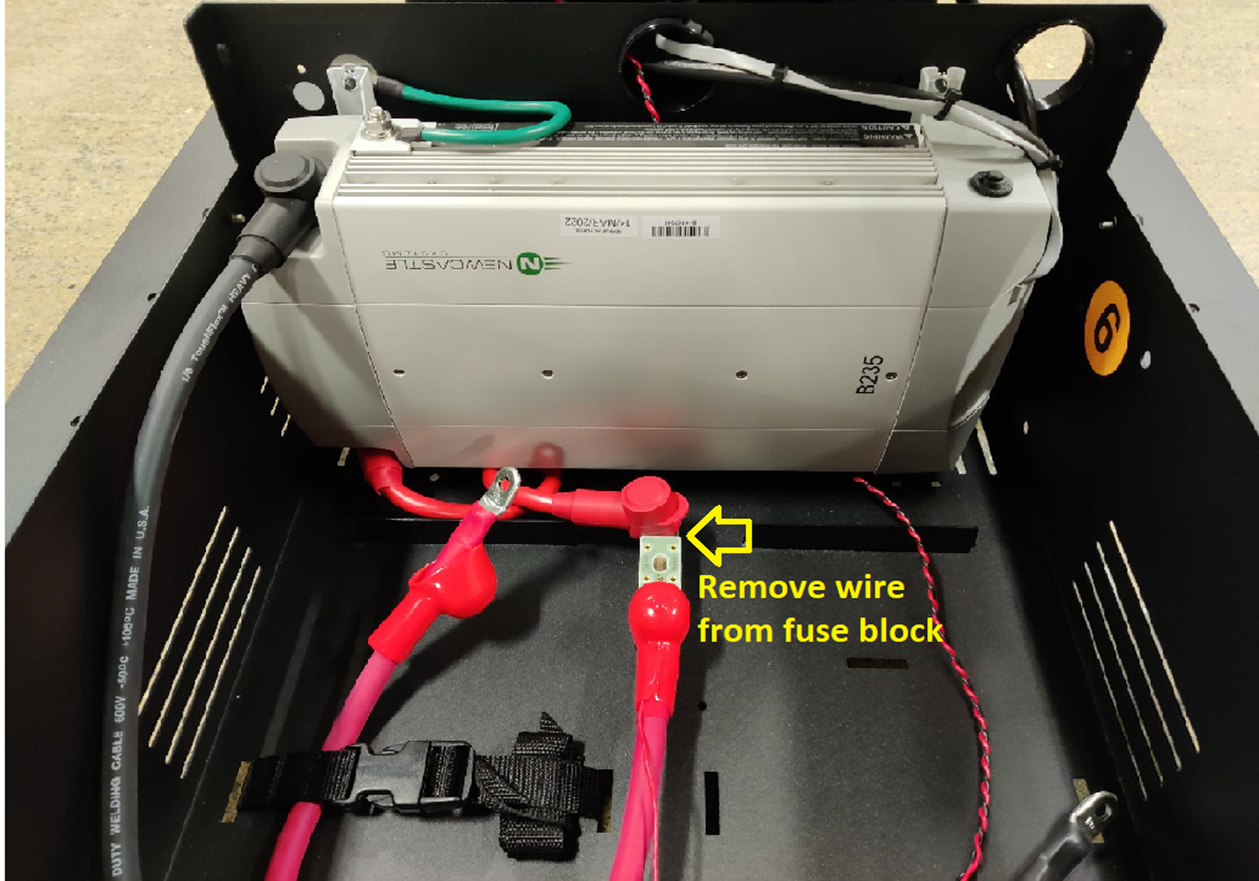

Remove top red wire from the fuse block. You may keep the other wire connected

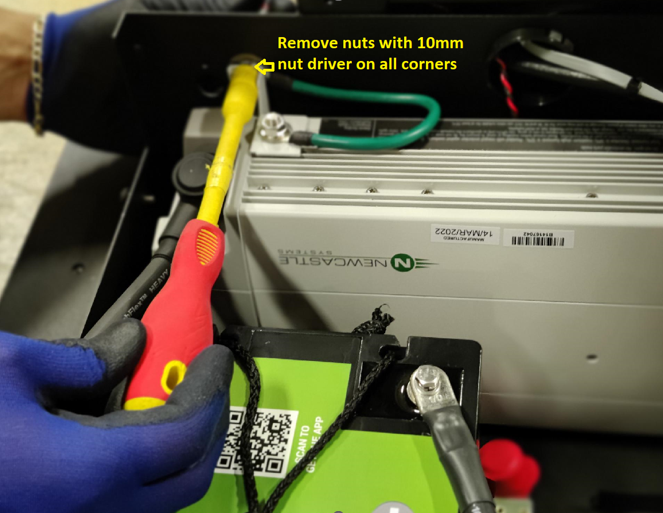

Remove mounting nuts/screws from corners (place inside a bin or bag to prevent loss of screws)

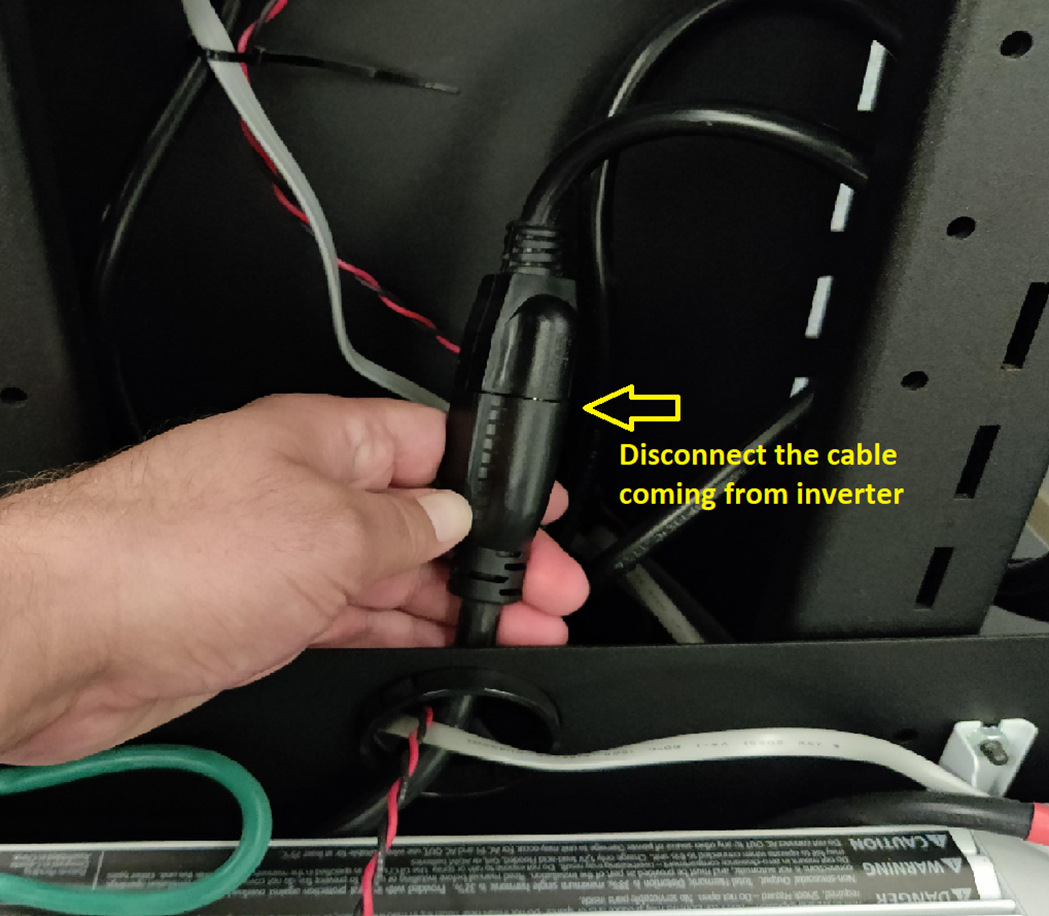

Disconnect the inverter plug that is connected to the power strip.

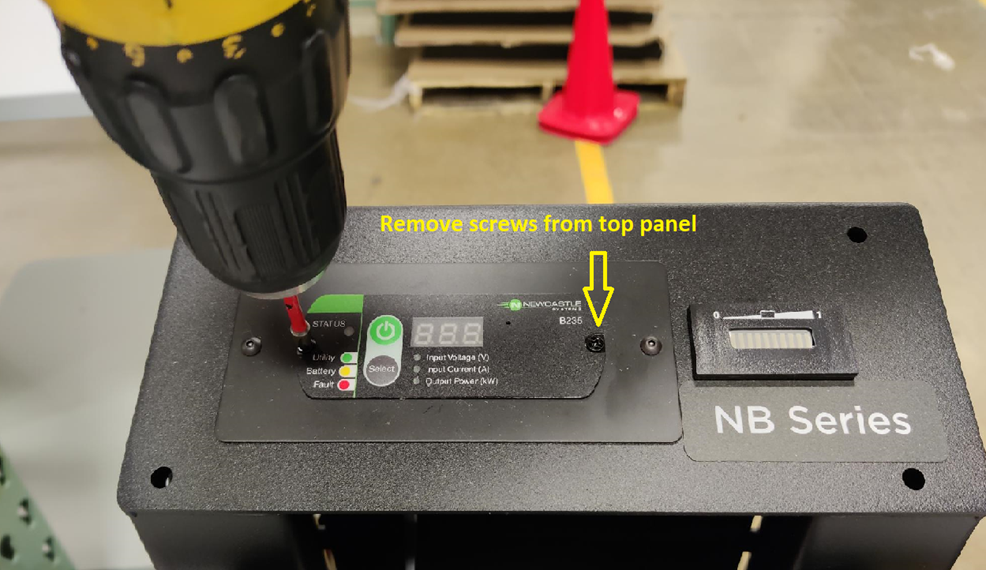

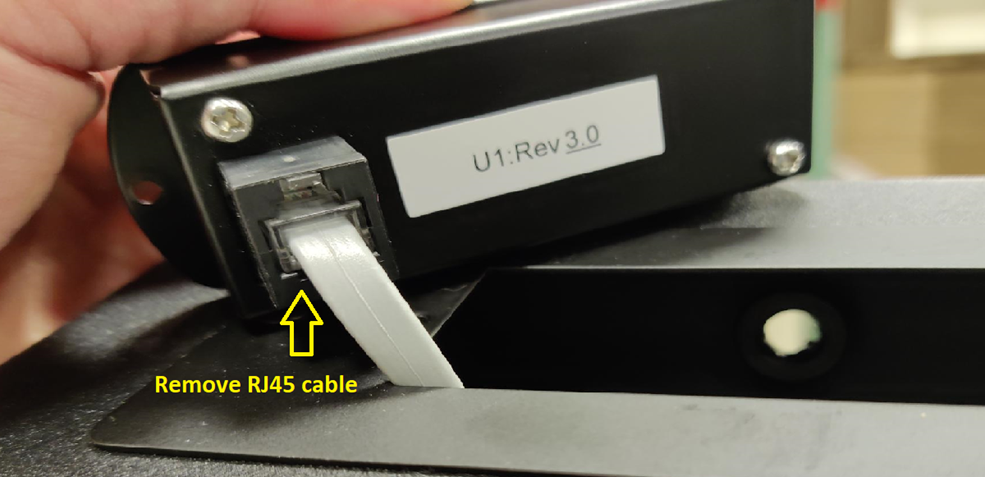

Remove the screws from top panel and disconnect RJ45 cable your meter may look different
You can now remove the inverter and replace with the new inverter; Replacing items in the reverse order in which you removed them.
Please pay attention to the orientation of the inverter when remounting

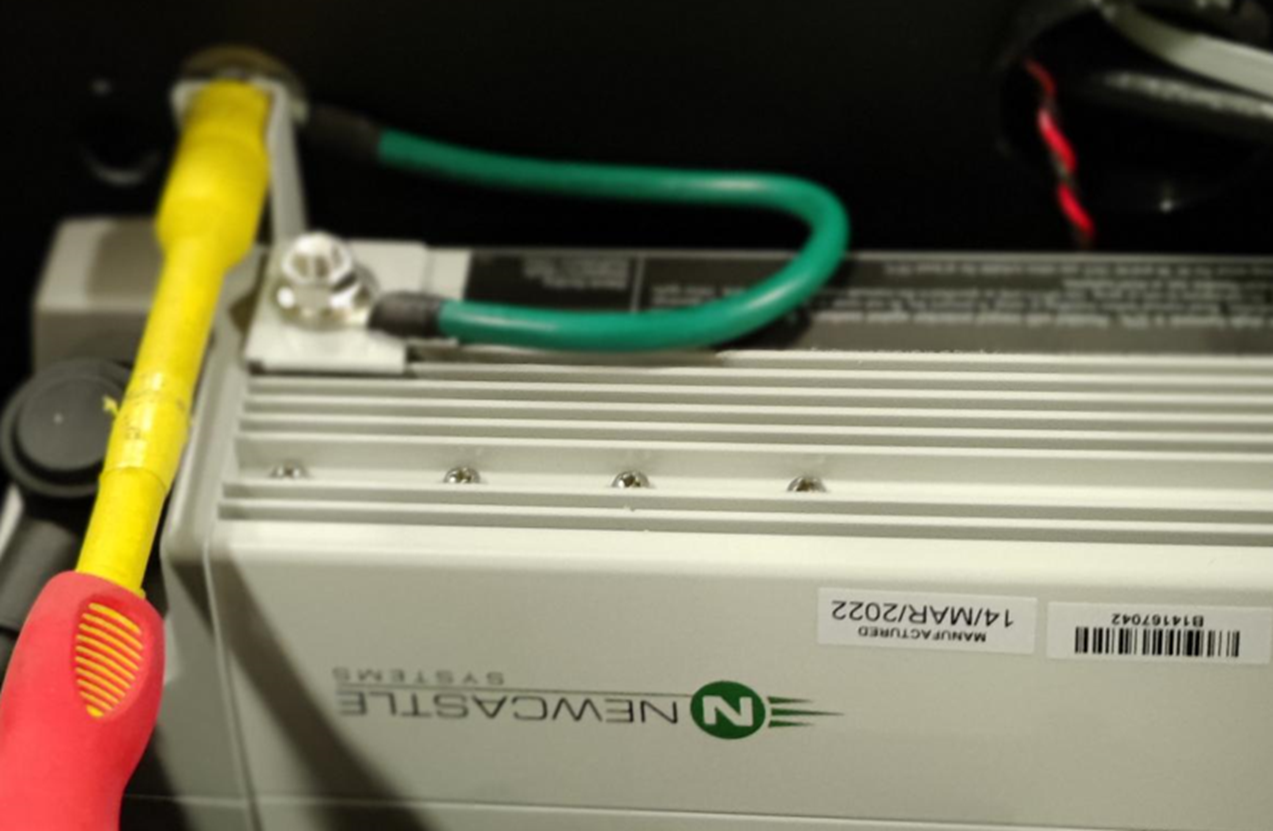

Remember to secure the Green grounding wire on the new inverter
Please Note: the photos illustrate a B235 Inverter, however the steps are the same for the B265.
