How do I reset the GFCI on my PWD2C-H-TSW?

How do I reset the GFCI switch on my Hybrid PowerDock?

Power button must be in the ON POSITION and a CHARGED BATTERY must be in the dock

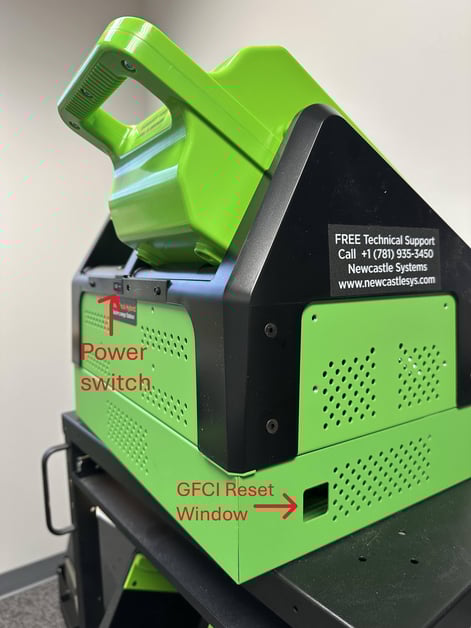

Locate the reset button on the front right corner of the power dock.

You may have to DISMOUNT the Hybrid Dock from your cart in order to see this button.

PWD2C H

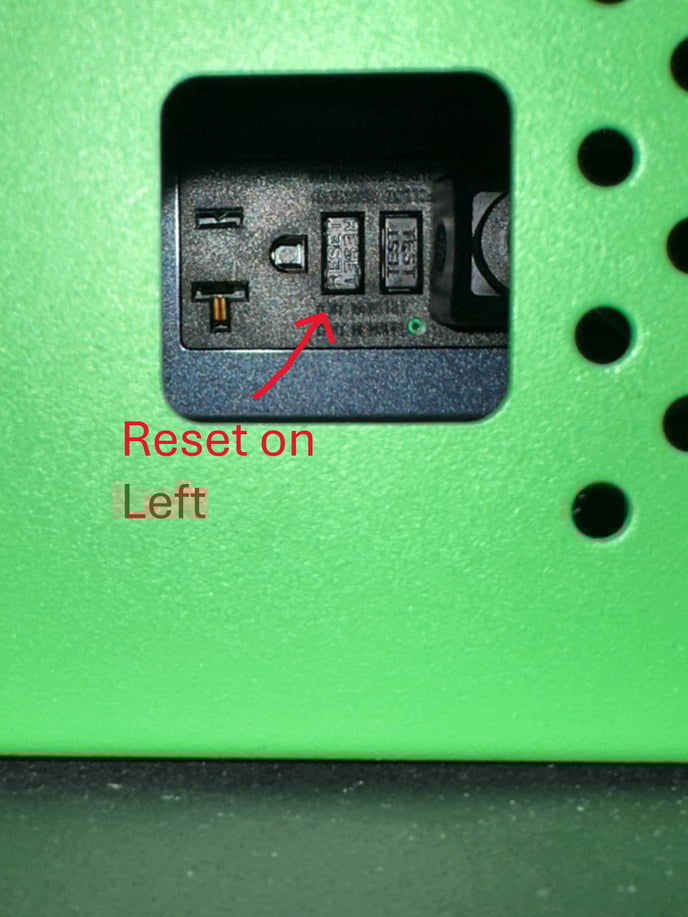

Use a non metal object and press the RESET button on the LEFT, you should hear a pop.

Note: The GFCI is fairly deep inside the dock so a long non-metal object will be required.

gfci 2

Check to see if the Dock is now supplying power from the batteries.
